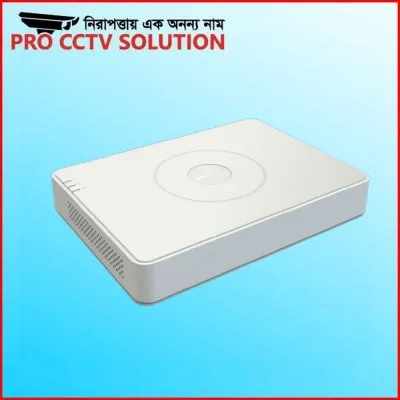

Hikvision DS-7116HGHI-K1 16 CH 1080P Lite Mini 1U H.265 DVR

Rated 3.50 out of 5 based on 2 customer ratings

(2 customer reviews)

Original price was: ৳ 8,500.00.Current price is: ৳ 7,920.00.

Faster Fingerprint
Dust & Water Proof
Communicates phones
Dual, Multi-Smartcard

... people are viewing this right now

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:

For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15 fps; CIF@25 fps (P)/30 fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA@15 fps; CIF@ 25fps (P)/30 fps (N)

For standard definition stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access: CIF/QVGA@15 fps

For standard definition stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 4 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
IP Video Input
2-ch (up to 18-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous playback16-ch
Video Output ModeHDMI/VGA simultaneous output

Network
Remote Connection128
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA1, SATA interface
CapacityUp to 10 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0
General
Power Supply12 VDC, 1.6 A
Consumption≤ 7 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
≤ 1.8 kg (4.0 lb.)
