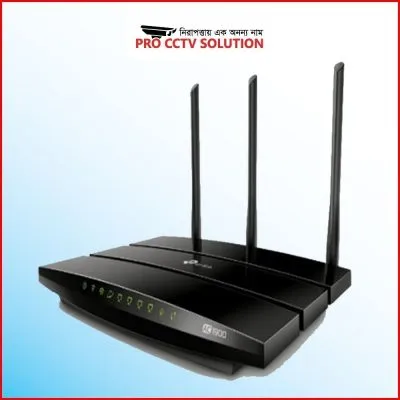

TP Link Archer A9 AC1900 Wireless MU-MIMO Gigabit Router
HARDWARE FEATURES |
Interface |
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
1 USB 2.0 Port |
Button |
WPS/Reset Button
Wireless On/Off Button
Power On/off Button |
External Power Supply |
12V/1.5A |
Dimensions ( W x D x H ) |
9.6 x 6.4 x 1.3 in. (243 X 160.6 X 32.5 mm) |
Antenna |
3 External Antennas + 1 Internal Antenna |
WIRELESS FEATURES |
Wireless Standards |
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz |
Frequency |
2.4GHz and 5GHz |
Signal Rate |
1300 Mbps at 5 GHz, 600 Mbps at 2.4 GHz |
Reception Sensitivity |
5GHz:
11a 6Mbps: -93dBm, 11a 54Mbps: -76dBm
11ac HT20 mcs8 : -68dBm, 11ac HT40 mcs9: -64dBm
11ac HT80 mcs9: -61dBm
2.4GHz:
11g 54Mbps: -77dBm
11n HT20 mcs7: -74dBm, 11n HT40 mcs7: -72dBm |
Transmit Power |
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz) |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security |
Enable/Disable SSID Broadcast, 64/128-bit WEP,
WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, WPS |
SOFTWARE FEATURES |
Quality of Service |
WMM, Bandwidth Control |
Security |
Parental Control
Guest Network
Firewall
Access Control |
WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access), Bigpond |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
TP-Link DDNS,DynDns, NO-IP |
Access Control |
Blacklist, Whitelist |
Firewall Security |
DoS, SPI Firewall, IP and MAC Address Binding |
Protocols |
Supports IPv4 and IPv6 |
Advanced Features |
MU-MIMO
Beamforming
Smart Connect
Airtime Fairness |
USB Sharing |
Supports Samba (Storage), FTP Server, Media Server |
Guest Network |
2.4GHz guest network × 1
5GHz guest network × 1 |
OTHERS |
Certification |
FCC, RoHS, RCM |
Package Contents |
Wireless Router Archer A9
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) |
Environment |
Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
