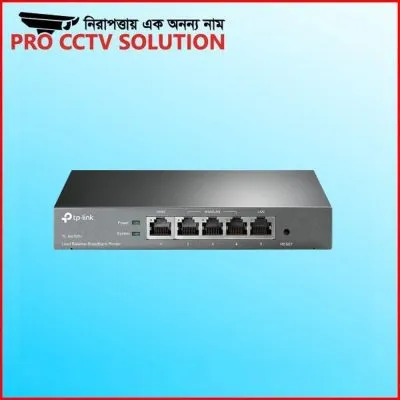

Specifications:
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
Interface | 1 Fixed 10/100 Ethernet WAN Port 1 Fixed 10/100 Ethernet LAN Port 3 Changeable 10/100 Ethernet WAN/LAN Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
Button | Reset Button |
Power Supply | External 9V/0.6A DC Adapter |
Flash | 16MB |
DRAM | 128MB |
LED | PWR, SYS, WAN, LAN, WAN/LAN |
Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
PERFORMANCE | |
---|---|
Concurrent Session | 10K |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
MAC Clone | Modify WAN/LAN MAC Address |
DHCP | DHCP Server/Client, DHCP Address Reservation |
Switch Setting | Rate Control, Port Configuration, Port VLAN |
ADVANCED FUNCTIONS | |
---|---|
ACL | IP/MAC/URL/WEB Filtering |
IGMP | IGMP Proxy/IGMP Snooping |
Forwarding | Virtual Server, Port Triggering, DMZ |
Load Balance | Policy Routing, Link Backup |
Routing | Static Routing |
Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
Traffic Control | Bandwidth Control, Session Limit |
MANAGEMENT | |
---|---|
Service | Dynamic DNS, UPnP |
Maintenance | System Time Setting Daylight Saving Time SNMP Diagnostics Firmware Upgrade Factory Defaults/Reboot Backup/Restore System Log Remote Management System Statistics |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-R470T+ Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
